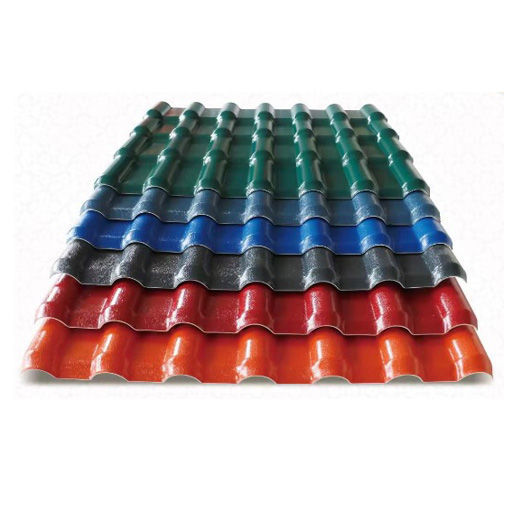

ASA UPVC TILE SHEET
ASA UPVC Tile Sheet

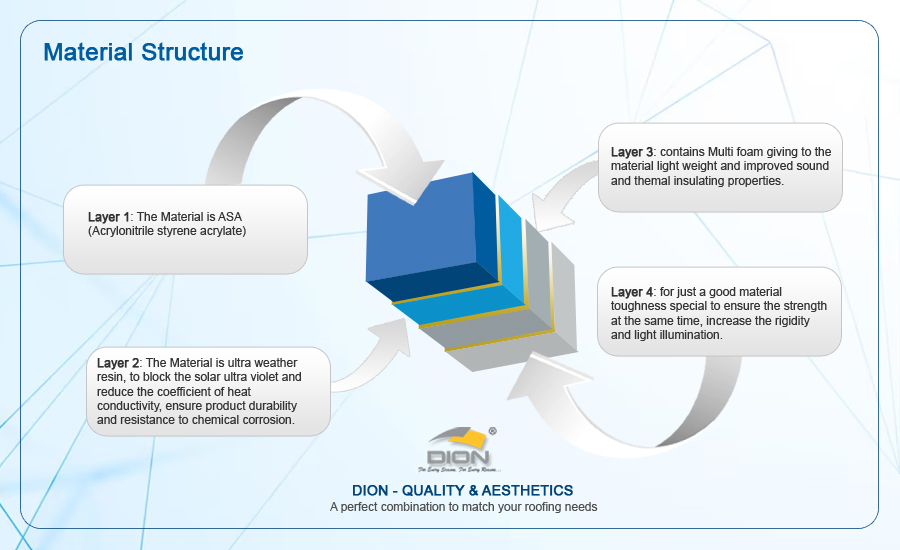

1. Surface Layer - The material is ultra-weather resin, to block the solar ultra violet and reduce the coefficient of heat conductivity, ensure product durability and resistance to chemical corrosion.
2. Surface Intermediate Layer - contains Multi foam giving to the material light weight and improved sound and thermal insulating properties.
3. Underlying layer - for just a good material toughness special to ensure the strength at the same time, increase the rigidity and light illumination.
Three kinds of different materials to give the product their own features and the organically combined to make a new generation of heat insulation uPVC sheet to solve the product durability, corrosion resistance, small rigidity, a sense of space and aesthetics issues.
PRODUCT FEATURES
- Heat & Sound Insulation
- Light Weight
- Cost effective & Non-Carcinogenic
- Environmental protection & energy conservation
- Pressure Prevention
- Corrosion Resistance
- Good water resistance
- Flame Retardant
| Profile Name | Thickness (mm) | Standard Length | Color |
|---|---|---|---|
| Trapezoidal Wave Profile | 1.5, 2.0, 2.5, 3.0 | 8,10,12 Ft. | Blue, White, Green, Gray, Terracotta |
| Round Wave Profile | 1.5, 2.0 | 8,10,12 Ft. | Blue, White, Green, Gray, Terracotta |
| ASA uPVC TILE SHEET | 2.5 | 2.41,3.07,3.73 Mtr. | Terracotta |
Note:: Length can be customized as per customers required on bulk order only. Purlin Span :1.5 mm < 1.5 Feet, 2 mm < 2 Feet, 2.5 mm < 2.5 Feet, 3 mm < 3 Feet Weight (Approx) : 2.6 kg per square meter (1.5 mm) 3.4 kg per square meter (2mm), 4 kg per square meter (2.5 mm), 5 kg per square meter (3 mm).
| Property | Test Method | Value |
|---|---|---|
| Density | ASTM D 792 | 1.47 gm/cc |
| Softening temp. at 10 N | ASTM D 1525 | 90.6 °c |
| HDT 66 PSI | ASTM D 648 | 71.9 °c |
| HDT 264 PSI | - | 66.2 °c |
| Rate of Burning | ASTM D 648 | <5 mm |
| Tensile Strength at break | TASTM D 638 | 410 Kg/cm2 |
| Elongation at break | ASTM D 638 | 32% |
| Oxygen index | ASTM D 2863 | 38% |
| Flammability | UI 94 | Match with V° |
| Water Absorption | ASTM D 570 | 0.07% |
Accessories
APPLICATIONS
INDUSTRIAL, COMMERCIAL, RESIDENTIAL & AGRICULTURAL
