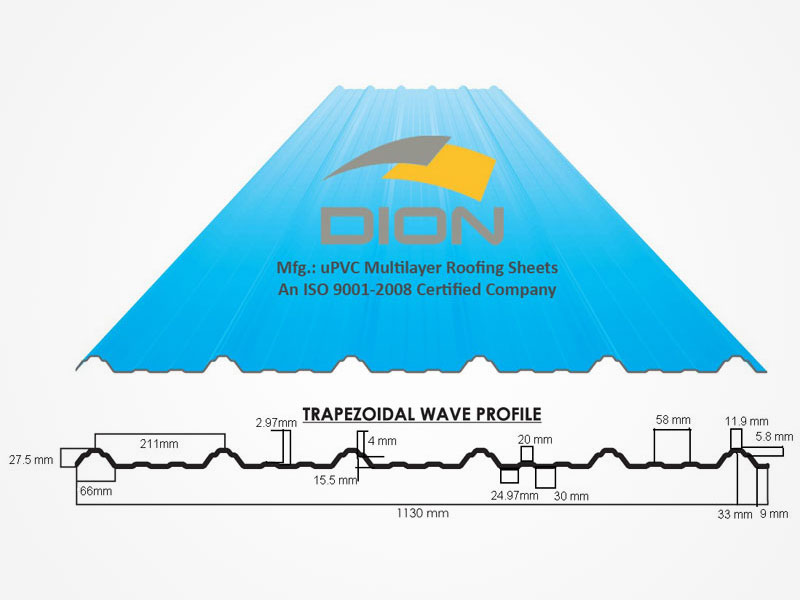

Trapezoidal Wave Profile
uPVC (Unplasticized Polyvinyl chloride) corrugated three layer Roofing sheet

upvc trapezoidal wave profile sheet

Product Code: TW-1130
Thickness: 1.0, 1.5, 2.0, 2.5, 3.0 (mm.)
Width: 1130 mm (1.13mtr.)
Cover Width: 1050 mm (1.05mtr.)
Length: 2.0, 2.5, 3.0, 3.66 (mtr.)
Also customizable as per customer’s required on bulk order only.

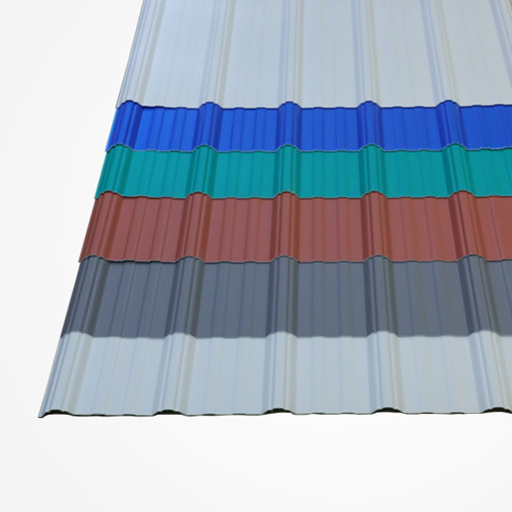

Color: White, Gray, Terracotta, Green Blue and Ivory

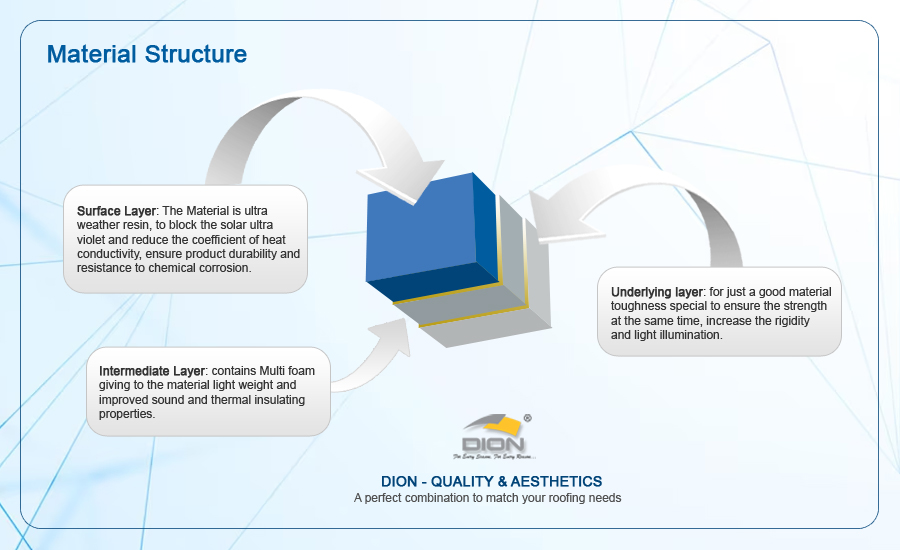

upvc-roofing-sheet-material-structure-diagram





















Three kinds of different materials to give the product their own features and the organically combined to make a new generation of heat insulation uPVC sheet to solve the product durability, corrosion resistance, small rigidity, a sense of space and aesthetics issues.





Available Products

> Trapezoidal Wave Profile

> Round Wave Profile

> Transparent Profile

> Plain Sheets

Properties of uPVC Material

Property

Test Method

Value

Density

ASTM D 792

1.47 gm/cc

Softening Temp. at 10 N

ASTM D 1525

90.6 °C

HDT 66 PSI

ASTM D 648

71.9 °C

HDT 264 PSI

ASTM D 648

66.2 °C

Rate of Burning

---

< 5 mm

Tensile Strength at break

ASTM D 638

410 Kg/cm²

Elongation at break

ASTM D 638

32 %

Oxygen Index

ASTM D 2863

38 %

Flammability

UL94

Match with Vo

Water Absorption

ASTM D 570

0.07 %
