Round Wave Profile
uPVC (Unplasticized Polyvinyl chloride) corrugated three layer Roofing sheet

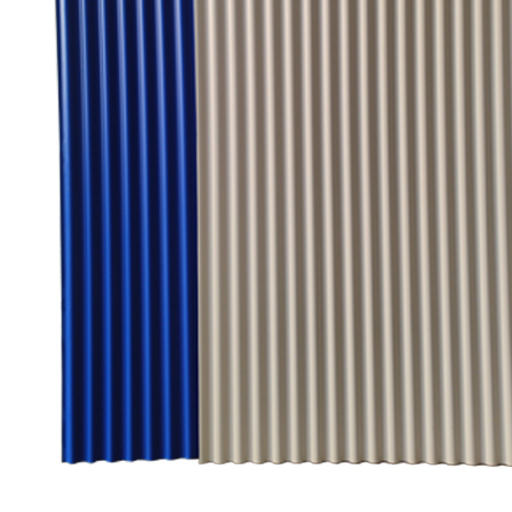

upvc round wave profile sheet

Product Code: RW-1130
Thickness: 1.0, 1.5, 2.0, 2.5, 3.0 (mm.)
Width: 1130 mm. (1.13mtr.)
Cover Width: 1080 mm (1.08mtr.)
Length: 2.0, 2.5, 3.0, 3.66 (mtr.)
Also customizable as per customer’s required on bulk order only
Color: White, Gray, Terracotta, Green and Blue





uPVC Round Wave Profile Roofing Sheets, profile Roofing, roffing sheet, upvc round wave

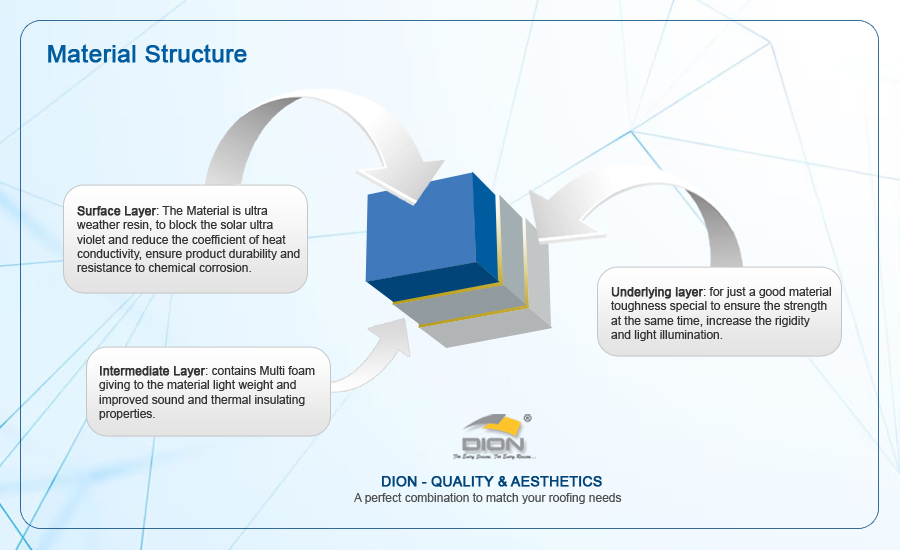

upvc roofing sheet material structure diagram





















Three kinds of different materials to give the product their own features and the organically combined to make a new generation of heat insulation uPVC sheet to solve the product durability, corrosion resistance, small rigidity, a sense of space and aesthetics issues.





Available Products

> Trapezoidal Wave Profile

> Round Wave Profile

> Transparent Profile

> Plain Sheets



Properties of uPVC Material

Property

Test Method

Value

Density

ASTM D 792

1.47 gm/cc

Softening Temp. at 10 N

ASTM D 1525

90.6 °C

HDT 66 PSI

ASTM D 648

71.9 °C

HDT 264 PSI

ASTM D 648

66.2 °C

Rate of Burning

---

< 5 mm

Tensile Strength at break

ASTM D 638

410 Kg/cm²

Elongation at break

ASTM D 638

32 %

Oxygen Index

ASTM D 2863

38 %

Flammability

UL94

Match with Vo

Water Absorption

ASTM D 570

0.07 %
