Dion Turbo Air Ventilator
dion turbo air ventilator

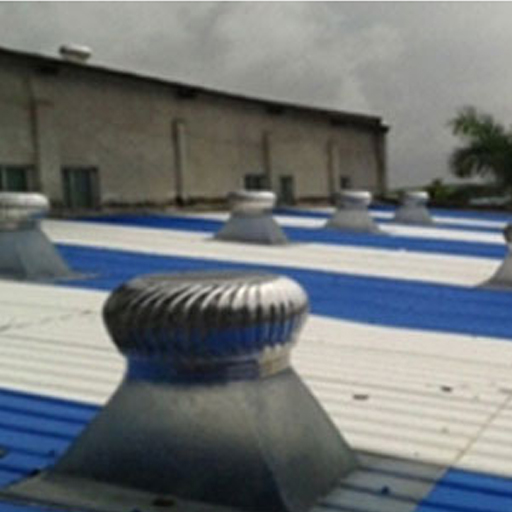

DION Wind Turbo roof Air ventilators perform continuously for 365 days, 24 X 7 – continuously in motion, utilizing natural wind Energy. Roof Ventilators are totally weatherproof, dust and rain leak proof & can with stand very high wind velocity and extreme climatic condition. Running cost of motorized exhaust fans can be eliminated by implementing wind Turbine roof ventilators which do NOT REQUIRE POWER / ELECTRICITY, MOTOR, WIRING, MAINTENANCE or RUNNING COST. Wind Turbo Ventilators which are very light in weight and durable can be mounted on to any type of existing industrial roofs without disturbing the existing structure. Wind ventilators require vary minimal wind speed available to function and perform. Natural ventilator provides a safe, cool, healthier and more controlled environment by removing the entrapped heat, smoke, dust, odor, industrial particles, moisture and dampness ensuring better working environment, thus contributing to employees better Health and productivity.
Specification
| Model | 24” |
| Type | Turbine Air Ventilators |
| No. of Sets | 1 |
| Overall Diameter | 750mm |
| Overall Height | 475 |
| Wind Velocity (KMH) | 8KMH (1950 Exhauster Appro.) |
| Temp Difference (C) | 3 to 5(C) |
| Stake Height | 10 to 20 FT. |
| TYPE OF BUILDING | AIR CHANGES PER HOUR |
|---|---|
| Boil Room | 15 – 60 |
| Engine / DG Room | 15 – 45 |
| Compression Room | 15 – 30 |
| Factories | 10 – 30 |
| Process House | 15 – 30 |
| Packing Room | 10 – 30 |
| Transformer Room | 12 – 30 |
| Ware Houses | 05 – 12 |
| Paint Shop | 15 – 35 |
| MATERAL SPECIFICATION |
|---|
| Typhonic Spindle System |
| Top Cover & Under Cover |
| Hindalco Made Aluminum |
| 2 mm Transparent FRP Sheet |
| Handmade Riveting |
| Nut Bolt Structure |
| 6.5 kg Fan Weight |
| 8 kg Dome Weight |
Available Products
Features
- A Translucent Opel Base Which Allows 22% of Natural Day Light Inside The Building (Optional).
- UV Stabilized Suites All Short of Slop Roofs Can Be Installed to Deep RIB Profiles.
- Impact and Trust Resistant Easy and Quick to Install.
- Light Weight Available in Verity of Colors.
