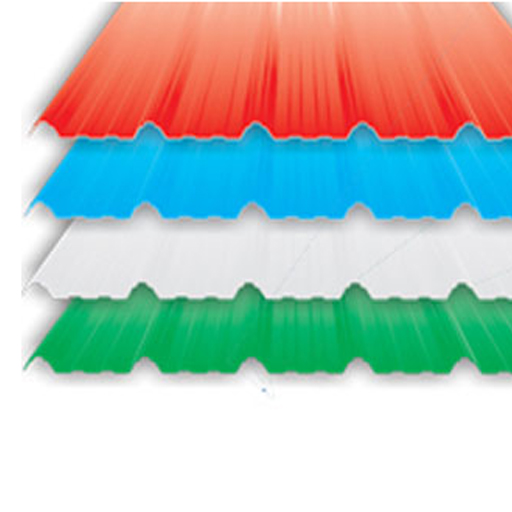

Color Coated Roofing Sheets
Pre-Painted Alu-Zinc Steel Roofing Sheets (Galvalume*)

Our Color Coated Corrugated Sheets are manufactured by using Alu-Zinc coated plate (PPGL) as the raw material, combined with a high quality, suatable and economical paint. With imported production lines, we are able to produce adequate amount of steel corrugated sheets as aesthetics, good quality and economical light weight, high strength product to satisfy large scale market demands as well as to model your dream structure. Our Trapezoidal Profile is excellent use for Roofing and Cladding.

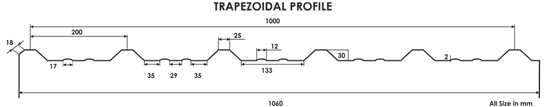

colour coated trapezoidal roofing sheet


Total Coating Thickness (TCT) : 0.4, 0.45, 0.47, 0.5, 0.55, 0.6, 0.65, 1.0 (mm.)
Width: 1060 mm (1.06 mtr.)
Standard Length (Feet): 8, 10, 12, 14, 16 (Customizable upto 30 Feet).

Color: Castle Red, Sky Blue, Asian White, Bright Green, Gray / Light Gray(Back Side)


*All Dimensions are in MM. variation +/- 10 mm
Purlin Span: 0.5 mm < 1.2 Meter


Technical Specifications

Pre-Painted Alu-Zinc Steel Sheets (Galvalume*): (55% Aluminium, 43% Zinc, 1.5% Silicon) Aluminium - Zinc Alloy coating gives corrosion resistance and superior heat reflectivity, Galvalume Steel reflects a high percentage of heat and can withstand in any weather conditions, without surface discoloration. It is also suited for coastal areas. Bare Galvalume coating is inorganic and does not contain volatile compounds that can harm the environment.

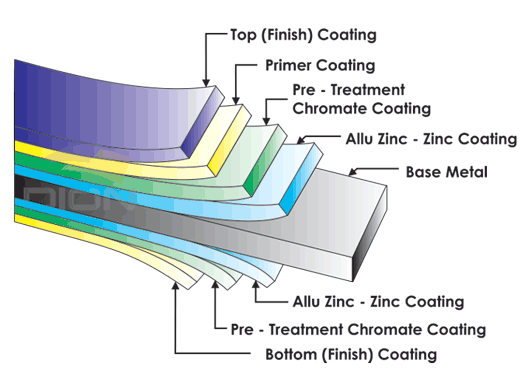

Material Structure

colour coated sheet material structure














Properties of Material

Metalic Coating

Alu-Zinc All Coating AZ150
(Higher or Lower Coating Optional)

Paint Coating

Regular Modified Polyster (RMP)
(Optional - SMP & PVF)

Painting Thickness (Top)

18 - 22 microns

Painting Thickness (Bottom)

5 - 7 microns

Surface Paint Reflection

Glossy Finish (Optional Matt Finish)

Standard Followed

ASTM A755, IS277, JIS3322, AS1397

Tensile Strength

240 - 550 Mpa

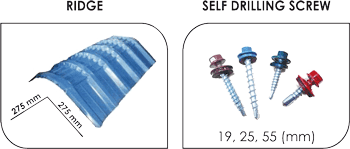

The Special waterproof accessory is very important for installation. We need to use the special waterproof accessory to retain the roofing sheet property. To avoid the roofing sheet have unusual circumstance (such as water-leakage, distortion etc.), then effect the lifespan of products.
While installation, always use the waterproof fixing accessory and also recommend to have experienced Fabricator/Worker to install our sheets with the special accessories for better waterproofing, strong wind withstanding and corrosion resistance.

Available Products

uPVC Roofing Sheets

> Trapezoidal Wave Profile

> Round Wave Profile

> Transparent Profile

> Plain Sheets


Color Coated Roofing Sheets

> Trapezoidal Wave Profile


uPVC FRP Roofing Sheets

> Trapezoidal Wave Profile

> Round Wave Profile

> Greca Profile

Benefits of Color Coated Sheets

  • High Strength
  • Superior Heat Resistance
  • Good Longevity
  • Corrosion Resistance
  • High Thermal Reflectivity
  • Aesthetically Attrative
  • Spectrum of Colors
  • Easy to Install
  • Economical
  • Available with Customise size

Applications of Color Coated Sheets

DION Color Coated Sheets are excellent use for Roofing and Cladding.

  • Industrial Sheds (Factory Building & Walling, Industries, etc.)
  • Commercial Sheds (Hotel & Resorts, Parking Sheds, Market Sheds, School, Colleges, Shelters, walkways, etc.)
  • Domestic Sheds (Residential Building, Vehicle Parking, etc.)
  • Agricultural Sheds (Ware houses, Animal houses, Godowns, Farm house, etc.)
